ED-LED: LEDs for Lightboxes

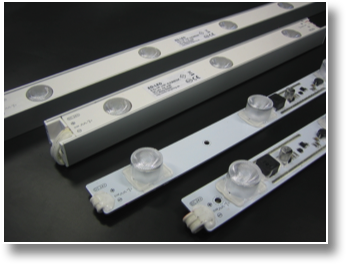

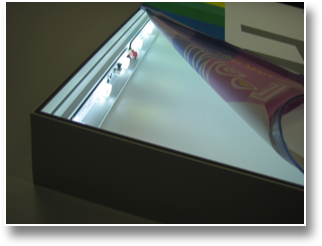

Eurocoms LED based box lighting system is designed to provide bright and even illumination of box signs. Specifically, they are the most cost effective way to illuminate double sided box signs as the linear fixtures come with a special lens that provides a compressed beam angle of 10˚ x 40˚.
Not only does this make these linear fixtures optimal for light-boxes, but they are also optimally suited as wall washers.
You can order them in 12" and 22" versions and also specify dry (IP00) or wet (IP65) location.
Download Product Flyer
Link to sample installation Video: ED-LED Sample Install Amsterdam Airport
Eurocoms LED based box lighting system is designed to provide bright and even illumination of box signs. Specifically, they are the most cost effective way to illuminate double sided box signs as the linear fixtures come with a special lens that provides a compressed beam angle of 10˚ x 40˚.
Not only does this make these linear fixtures optimal for light-boxes, but they are also optimally suited as wall washers.
You can order them in 12" and 22" versions and also specify dry (IP00) or wet (IP65) location.
Download Product Flyer
Link to sample installation Video: ED-LED Sample Install Amsterdam Airport
show
show
show
show
show
show
show
show
show
System Type:
Box Lighting or Wall Washing System
Circuit Type:
24VDC; Parallel
Ingress Protection Rating:
IP00/IP66
Beam Angle:
10˚ x 40˚
Available Colors
Warm White (3000˚ Kelvin); Cold White (6000˚ Kelvin)
Rated Life (L70):
22000 hours @ 80˚F ambient Temperature
Control Options:
5V PWM Dimming
Connection Options:
Pop rivet or 3M tape
Certification
RoHS; CE; UL94 V-2
show
show
show
show
show
show
show
show
show
show
show
show
Technical Data
Product:
LED-ED-IP-HP-03W60K; LED-ED--IP-HP-05W60K
LED-ED-HP-03W60K; LED-ED-HP-05W60K
No. of LEDs:
3 and 5
3 and 5
Center to Center Distance btw. LED
110mm or 4.3"
110mm or 4.3"
Dimensions:
12" x 1.2" x 1" / 21.5" x 1.2" x 1"
11.8" x 1.1" x 0.6" / 20.3" x 1.1" x 0.6"
Weight:
10 oz / 16oz
2 oz / 3.3oz
Input Voltage:
24VDC
24VDC
Power Consumption
6.8W (3 LED Version) / 11W (5 LED Version)
6.8W (3 LED Version) / 11W (5 LED Version)
Light Output:
660lm/1100lm
660lm/1100lm
Efficiency (lm/Watt):
97lm/W; 100lm/W
97lm/W; 100lm/W
Beam Angle:
10˚ x 40˚
10˚ x 40˚
Dimming Abilities
5V PWM Signal (Traxon/Ecue compatible)
5V PWM Signal (Traxon/Ecue compatible)
